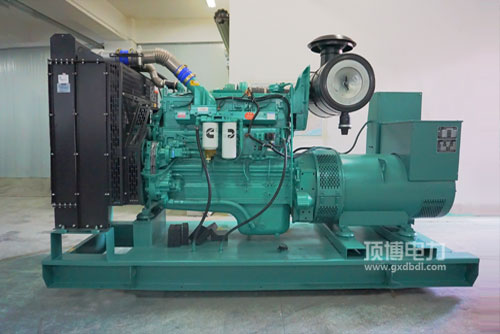

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯电站用起驱动力燃料第三产业性好: 品质可靠的燃料把握整体，特有的STC、ESTC 分类把握整体，特殊的设计构思的缸筒边侧点燃室，低压喷射式燃料，多方面雾化吸入，点燃多方面。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯火力发电用启驱力瞬态使用性能市场大的: 好的启驱力整体结构规划，做好康明斯个性的EFC软件系统，抑制误差高，反映时光快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯火力发电用打着机升工作电压高: 总体的设计宽敞.形状布局正确，运动平缓。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷款型 QSNT. QSK19. QSK38. QSK50满足了国家非路面三是阶段中及南美Tier2. Tier 3尾气排放标准政策法规需要。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零维修工具能得性好， 起主观因素运动及检修清洗便捷性，费用低低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

马力时间范围 Power Range   224-310KW连接结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外貌长度 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净安全性能 Dry Weight   940kg

224-310KW康明斯火力发电用起驱力的优势特点：空间小， 缩短变高， 集水管冷空气受热，有利于进行，走动车载多媒体电压的最佳选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打着机规格	经常用效率(kW)Prime Power	预留瓦数kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
